Description
SUNGOLD POWER 8kW OFF-GRID SOLAR KIT (120/240V SPLIT-PHASE, 48V)
Reliable off-grid power for cabins, homes, shops, and remote properties—built around a high-output 8kW split-phase (120/240V) inverter and 3,320W of solar using 8×415W monocrystalline panels.
Choose the battery configuration that fits your runtime needs—10.24kWh or 16.07kWh—and scale later if you want more storage.
SERIOUS 120/240V POWER (SPLIT-PHASE OFF-GRID PERFORMANCE)
This system delivers stable split-phase power so you can run real home loads at 120V + 240V, not just small cabin circuits.

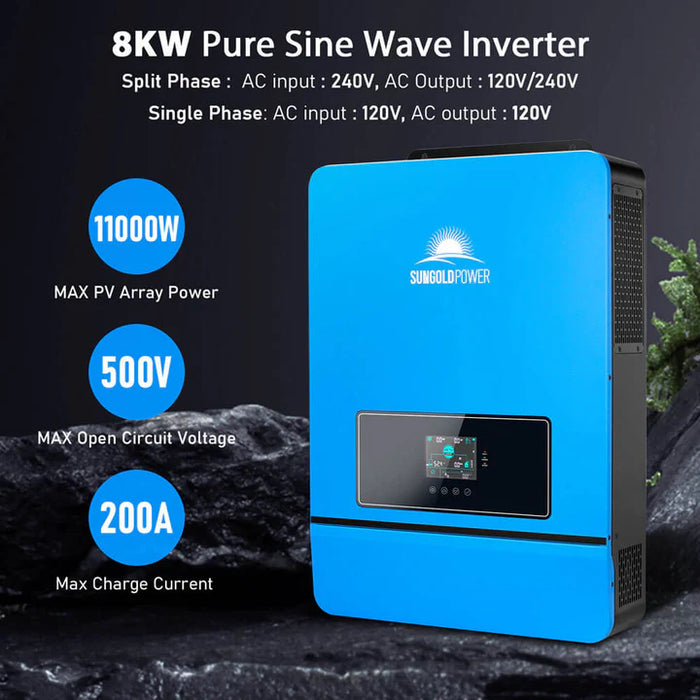

Inverter highlights (8kW split-phase):
-
Output waveform: Pure Sine Wave
-
AC Output: 120/240VAC split-phase
-
Parallel capability: Up to 6 units
-
MPPT operating voltage range: 125VDC – 425VDC
-
Efficiency: 92%
-
Max charging current: 180A
-
Max PV array power: 11,000W
-
Warranty: 3 Years
-
Certification: UL1741 listed by ETL

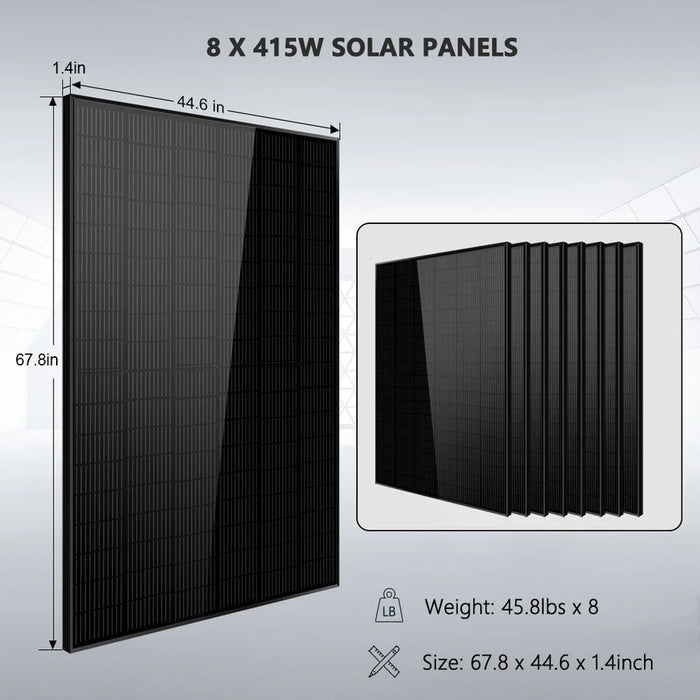

HIGH-OUTPUT SOLAR ARRAY (8 × 415W PANELS = 3,320W)
Your solar array is sized to recharge fast and produce strong daily generation in good sun conditions.
415W panel highlights:
-
Peak power: 415W
-
Cell type: Monocrystalline
-
Tolerance: ±3%
-
Vmp: 31.11V
-
Imp: 13.34A
-
Voc: 38.32V
-
Isc: 14.09A
-
Size: 67.8 × 44.6 × 1.4 in
-
Weight: 48.06 lb
-
Product/workmanship warranty: 12 Years
-
Performance warranty: 25 Years
-
Certifications: UL61730, CEC listed
BEST FOR
-
Off-grid homes & cabins
-
Shops, barns & remote properties
-
Backup power setups (critical loads)
-
Customers who want real 120/240V split-phase power
-
Anyone who wants upgrade paths (more batteries + inverter parallel scaling)
CHOOSE YOUR BATTERY OPTION

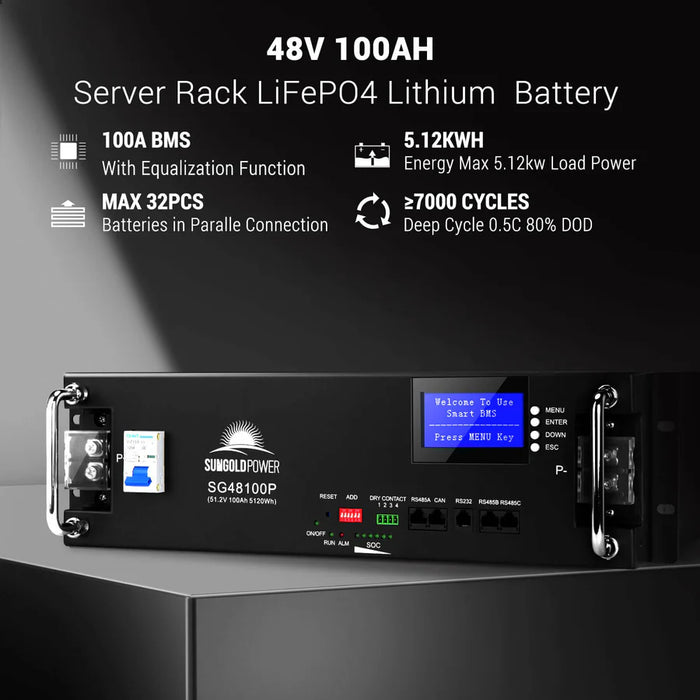

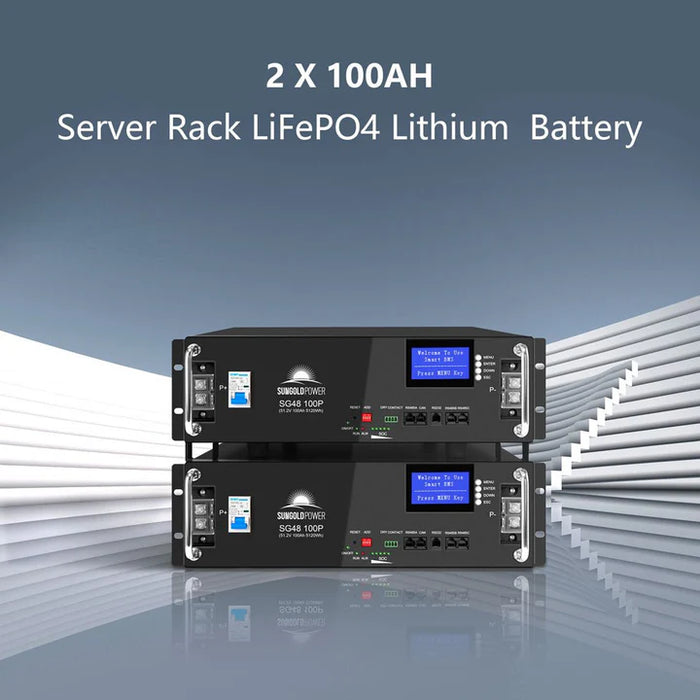

OPTION 1 — SGR-8K10E (2× SG48100P Rack Batteries) — 10.24kWh Total
Best for customers who want rack-style storage, easier modular expansion, and strong cycle life.
Battery highlights (each SG48100P):
-
51.2V 100Ah (5.12kWh each)
-
Cycle life: ≥7000
-
Communication: RS485 / CAN
-
Operating environment: Indoor
-
IP rating: IP31 battery box
-
Warranty: 10 Years
-
Certificates: UL1973, UL9540A
OPTION 2 — SGR-8K10T (1× SG48200T Powerwall Battery) — 10.24kWh Total
Great for customers who want a clean wall-mounted look and a single larger battery.
Battery highlights (SG48200T):
-
51.2V 200Ah (10.24kWh)
-
Cycle life: 5000 cycles
-
Standard charge/discharge current: 100A
-
Max charge current: 140A
-
Communication: RS485 / CAN
-
Operating environment: Indoor
-
Warranty: 10 Years
OPTION 3 — SGR-8K16P (PowerMax 314 Outdoor Battery) — 16.07kWh Total
Best for customers who want maximum runtime and a rugged indoor/outdoor battery solution.
Battery highlights (PowerMax 314 Outdoor):
-
51.2V 314Ah (16.07kWh)
-
Cycle life: 8000 cycles
-
Standard charge/discharge current: 150A
-
Max continuous charge current: 190A
-
Communication: RS485 / CAN
-
Operating environment: Indoor & Outdoor
-
IP rating: IP65
-
Warranty: 10 Years
-
Certificates: UL1973, UL9540A
NEED HELP DECIDING WHICH OPTION IS RIGHT FOR YOU?
Tell us what you plan to run (fridge, TV, laptop, lights, appliances), and we’ll confirm sizing or recommend the next step up. Click Here!
Specifications

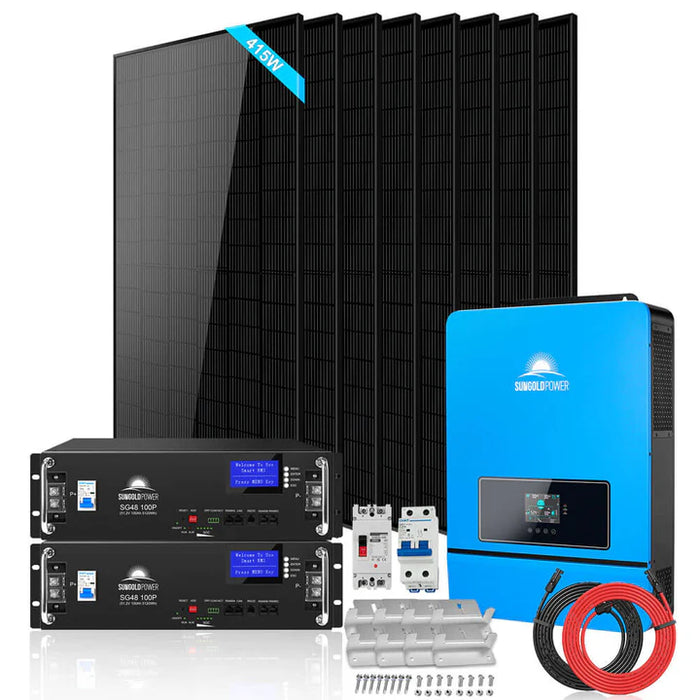

What's in the Box
SGR-8K10E:
★ 1 X 8000W 48Vdc 120/240Vac Inverter Up to 6 units Parallel
★ 8 X 415 Watt Monocrystalline Solar Panels
★ 2 X 100AH 51.2V Lifepo4 Battery SG48100P
★ 1 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
★ 8 X Sets of Mounting Z-Brackets
★ 1 X 200A DC Breaker
★ 1 X 25A PV Breaker
SGR-8K10T：
★ 1 X 8000W 48Vdc 120/240Vac Inverter Up to 6 units Parallel
★ 8 X 415 Watt Monocrystalline Solar Panels
★ 1 X 200AH 51.2V Lifepo4 Battery SG48200T
★ 1 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
★ 8 X Sets of Mounting Z-Brackets
★ 1 X 200A DC Breaker
★ 1 X 25A PV Breaker
SGR-8K16P：
★ 1 X 8000W 48Vdc 120/240Vac Inverter Up to 6 units Parallel
★ 8 X 415 Watt Monocrystalline Solar Panels
★ 1 X PowerMax 51.2V 314AH Outdoor Energy Storage Battery
★ 1 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
★ 8 X Sets of Mounting Z-Brackets
★ 1 X 200A DC Breaker
★ 1 X 25A PV Breaker
Downloads
User Manual:
Wiring Diagram:
