Sungold Power- 15000W 48V Split Phase Inverter Charger | Home Backup Power

Description

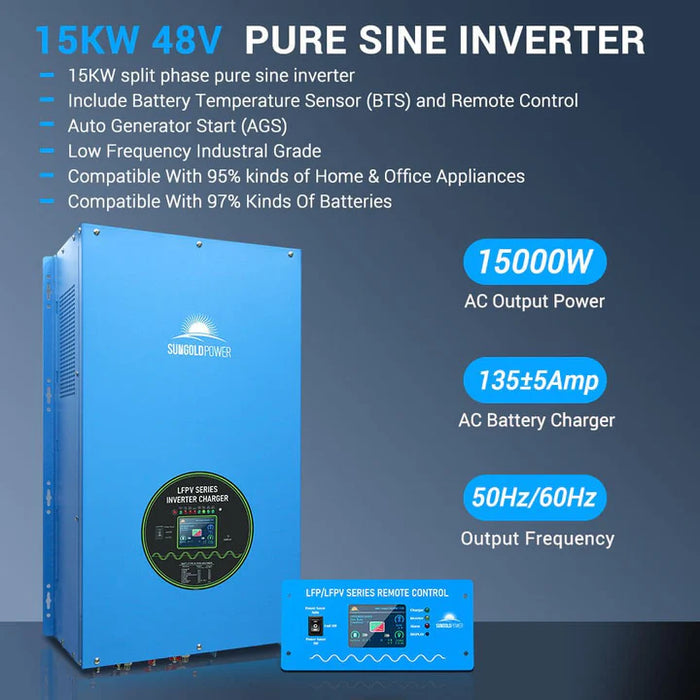

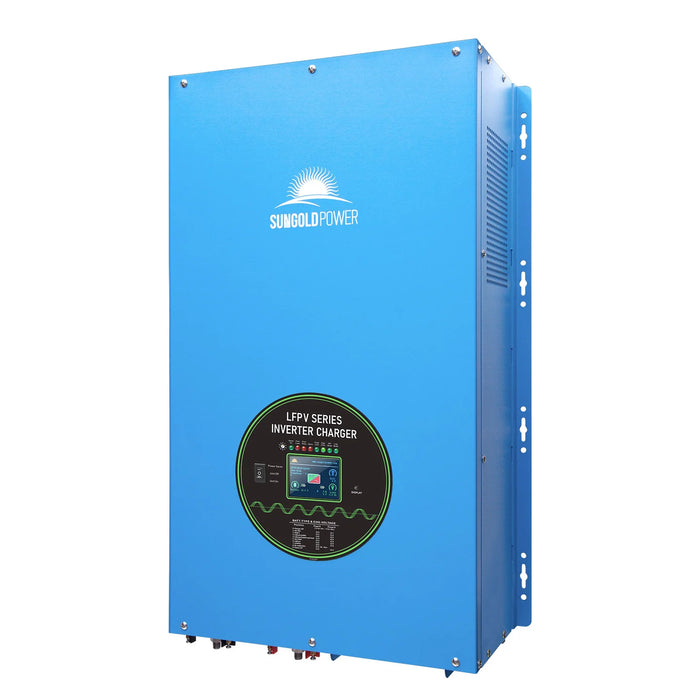

15000W 48V Split Phase Pure Sine Wave Inverter Charger

High-Capacity Power for Whole-Home, Off-Grid & Commercial Backup Systems

The 15000W 48V Split Phase Pure Sine Wave Inverter Charger is a professional-grade energy conversion system engineered for demanding residential, off-grid, and light commercial power applications. Built on a low-frequency transformer platform, this inverter delivers exceptional surge capacity, long-term reliability, and clean, utility-grade power suitable for sensitive electronics and heavy motor loads alike.

Designed to operate as the central power hub of your energy system, this all-in-one unit combines a high-power inverter, intelligent AC battery charger, and automatic transfer switch into a single enclosure—simplifying installation while maximizing performance and system stability.

Available as a stand-alone inverter or bundled with 20.48kWh of UL-certified lithium battery storage, this system offers scalable flexibility for a wide range of energy needs.

TRUE SPLIT-PHASE POWER FOR REAL-WORLD APPLICATIONS

Unlike standard single-phase inverters, this unit delivers true 120V / 240V split-phase output, allowing it to connect directly to standard residential breaker panels and power both common household circuits and high-demand 240V appliances.

The inverter requires a 240VAC input and can output either 120VAC or 240VAC, making it suitable for:

• Whole-home backup systems

• Off-grid homes and cabins

• Workshops and agricultural buildings

• Small commercial and mixed-use facilities

Output frequency is selectable between 50Hz or 60Hz, ensuring compatibility across regional standards and specialized applications.

LOW-FREQUENCY DESIGN = HIGH SURGE PERFORMANCE

This inverter is built on a low-frequency transformer architecture, a critical feature for applications involving large inductive loads. This design enables the system to handle extreme startup surges from equipment such as:

• Air conditioners and heat pumps

• Water well pumps

• Refrigerators and freezers

• Power tools and compressors

• Electric dryers and HVAC equipment

The result is stable voltage output, reduced nuisance shutdowns, and long-term durability under heavy, repeated loads.

INTELLIGENT INVERTER + HIGH-POWER AC CHARGER

The integrated high-capacity AC charger (up to 120A) allows rapid battery recharging from grid power or a generator. Charging current is fully adjustable from 0–100%, giving you precise control over generator loading and system efficiency.

The inverter supports AC priority or battery priority modes, allowing you to configure how power flows based on your energy strategy:

• Use grid or generator power first

• Prioritize battery power for off-grid or backup operation

An automatic transfer switch ensures seamless power transitions with a typical transfer time of 8–10 milliseconds, keeping essential loads online during grid interruptions.

ADVANCED BATTERY COMPATIBILITY & CONTROL

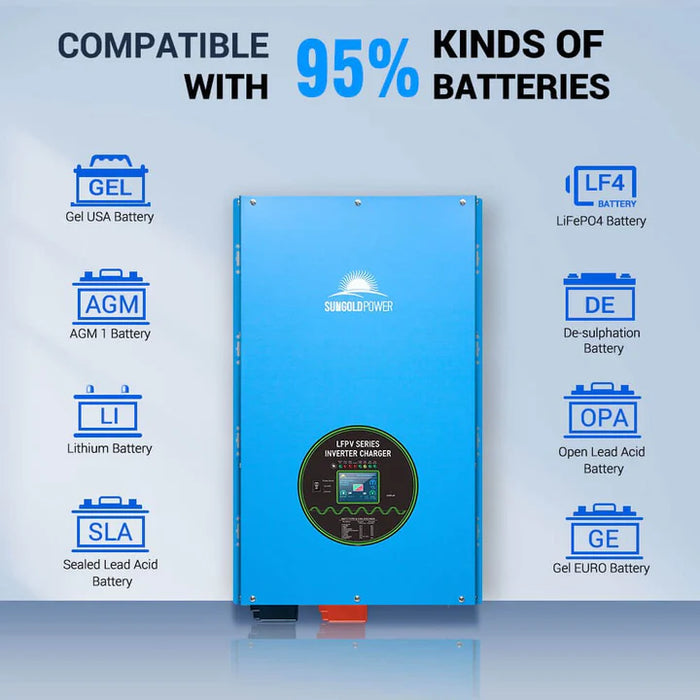

This inverter is compatible with a wide range of battery chemistries, including:

• LiFePO₄ (Lithium Iron Phosphate)

• AGM

• GEL

• Flooded lead-acid

Battery charging profiles are selectable to ensure proper voltage behavior and battery longevity. A Battery Temperature Sensor (BTS) is included to provide temperature-compensated charging, improving safety and extending battery life in varying environments.

AUTOMATIC GENERATOR START & REMOTE MONITORING

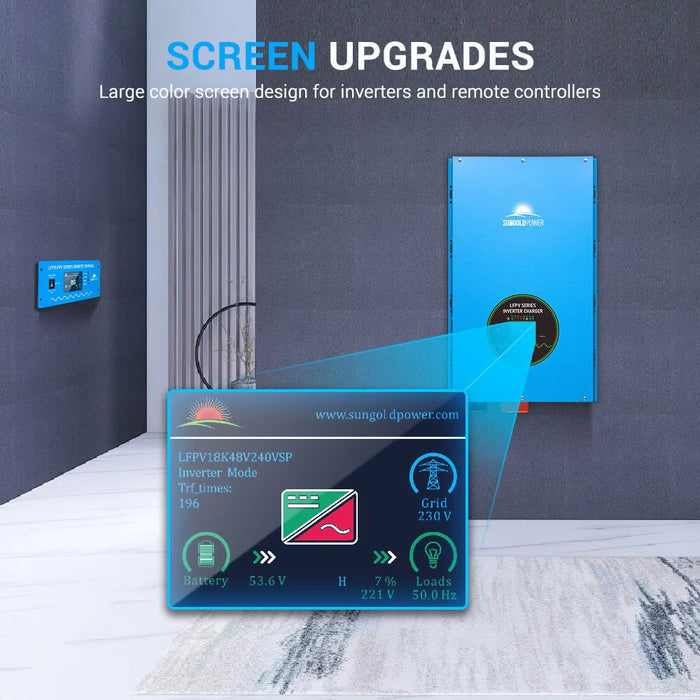

The system supports Automatic Generator Start (AGS), enabling the inverter to automatically start and stop a compatible generator based on battery state of charge or load demand. A remote control module is included, allowing convenient system monitoring and configuration without direct access to the inverter enclosure.

VARIANT OPTIONS

Stand-Alone Inverter

15000W 48V Split Phase Pure Sine Wave Inverter Charger

This option is ideal for customers who already have a compatible 48V battery bank or are designing a custom system. It provides full inverter, charger, and transfer-switch functionality without bundled storage.

Inverter + Battery Bundle

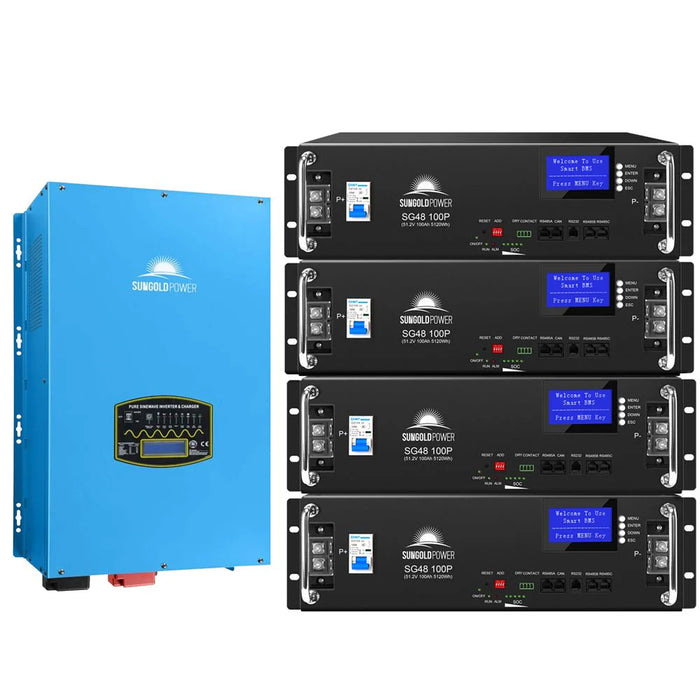

15000W Inverter Charger + 4 × SG48100P LiFePO₄ Batteries (20.48kWh Total)

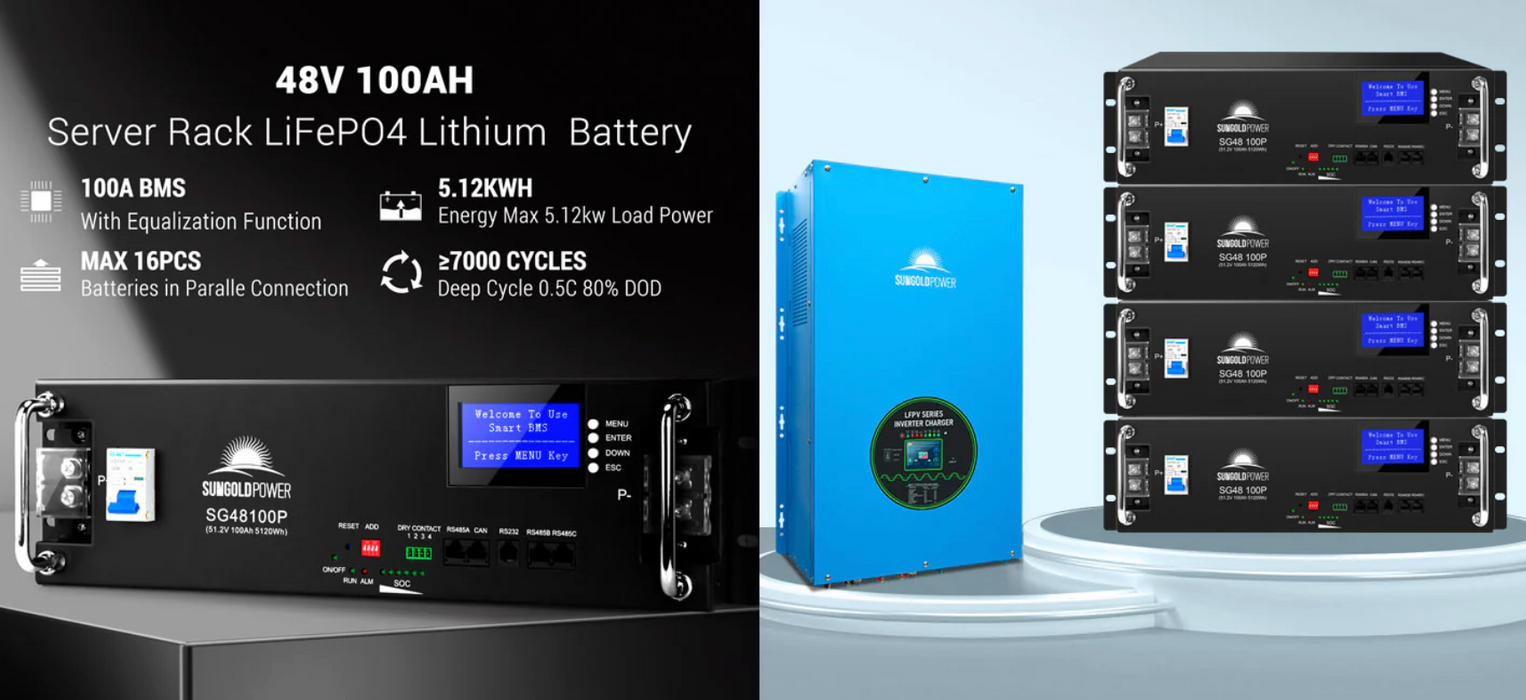

This bundled configuration includes four SG48100P 48V 100Ah server-rack lithium batteries, delivering 20.48kWh of total usable energy storage.

Battery System Highlights:

• LiFePO₄ chemistry for long cycle life and thermal stability

• UL1973 & UL9540A certified for residential and commercial installations

• Designed for solar storage, backup power, and energy shifting

• Rack-mountable, modular, and expandable

• High safety profile with integrated BMS protection

This bundle is ideal for customers seeking a balanced, turnkey inverter + battery solution that can be expanded over time.

Specifications

Inverter Output

• Continuous Power: 15,000W

• Surge Power: Up to 45,000W (short duration)

• Output Voltage: 120V / 240V Split Phase

• Waveform: Pure Sine Wave

• Frequency: 50Hz / 60Hz selectable

• Efficiency: >88%

• Transfer Time: ≤8–10ms

AC Input

• Input Voltage: 240VAC

• Input Range: 184–253VAC / 140–270VAC selectable

• Built-in Transfer Switch: Yes

Battery & DC Input

• Nominal Battery Voltage: 48V

• Battery Types Supported:

  • Lithium Iron Phosphate (LiFePO₄)

  • AGM

  • GEL

  • Flooded Lead-Acid

• Battery Voltage Profiles: 8 selectable presets

• Low / High Voltage Protection: Yes

Built-In Charger

• Max Charging Current: Up to 120A

• Charge Rate Adjustment: 0–100% selectable

• Charging Type: 4-step intelligent charging

• Power Factor Correction (PFC): Yes

• Battery Temperature Sensor: Included

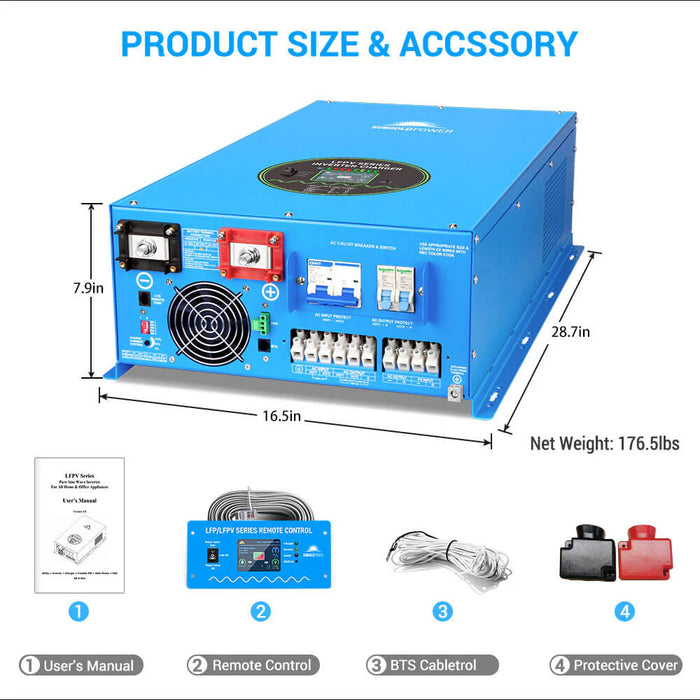

What's in the Box?

• 15000W 48V Split Phase Pure Sine Wave Inverter Charger

• LCD Remote Control

• Battery Temperature Sensor (BTS)

• Remote Control Cable

• User Manual

IMPORTANT NOTES

• This inverter does not include an MPPT solar charge controller

• A separate MPPT controller is required for solar panel input

• Designed for 48V battery systems only

• Professional installation recommended for split-phase systems
