Description

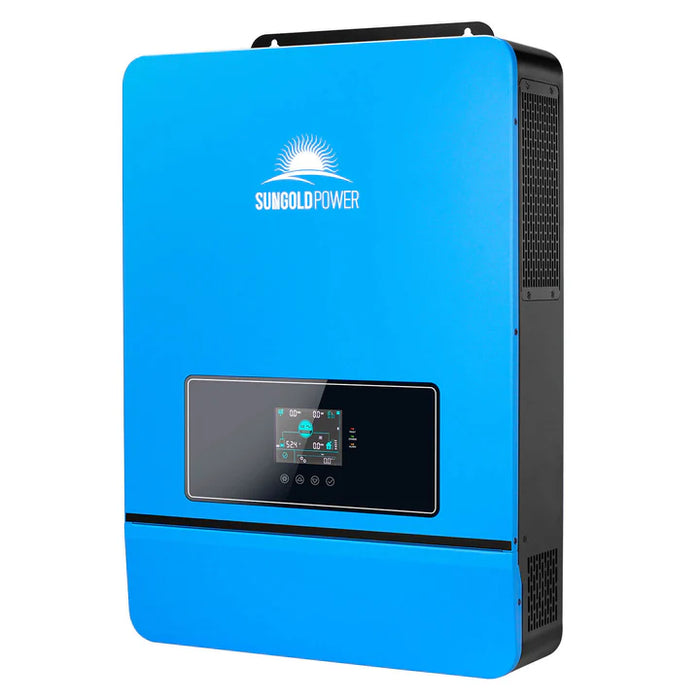

The Sungold 8KW 48V Split Phase Solar Inverter is an all-in-one solution designed for off-grid solar systems. It combines a pure sine wave inverter, dual MPPT solar charge controllers, and a battery charger into a single unit, simplifying installation and system management. The inverter supports up to 200A battery charging and a maximum PV open-circuit voltage of 500VDC. It can provide 120V single-phase or 120V/240V split-phase output depending on system requirements.
A WiFi module is included, allowing users to monitor the inverter’s operating status and parameters through a mobile phone app. The inverter is UL 1741 certified by ETL for off-grid solar system applications.

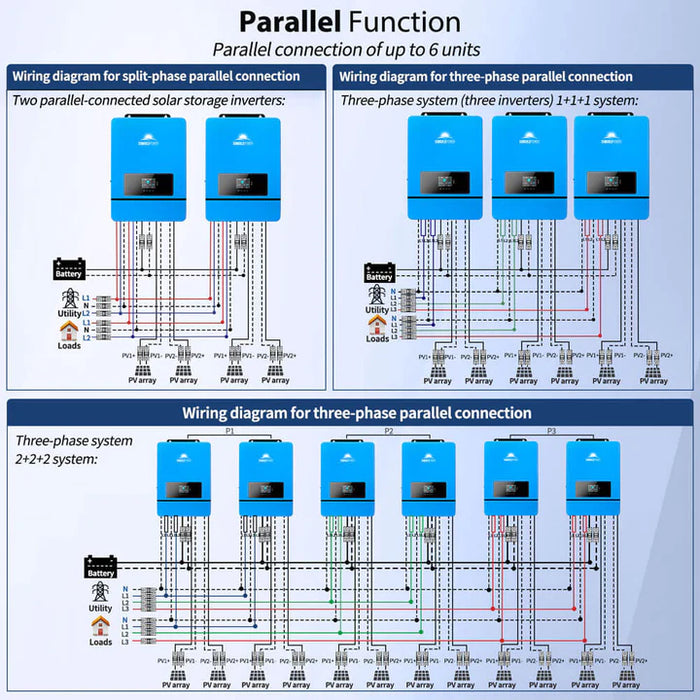

Parallel Capability
The inverter supports parallel connection of up to 6 units, allowing systems to scale up to 48kW total output. With multiple units connected, the system can provide 120V single-phase, 120V/240V split-phase, or 208V three-phase output (three-phase available when more than three units are connected). This increases both total power capacity and surge capability.
Stable Output & Protection
The inverter delivers 8000W rated power with 16,000W peak power and supports motors up to 6HP. It includes several protection features such as:
-
PV input over-voltage protection
-
PV input over-current protection
-
AC input over-voltage protection
-
Battery over-voltage protection
-
Overload protection

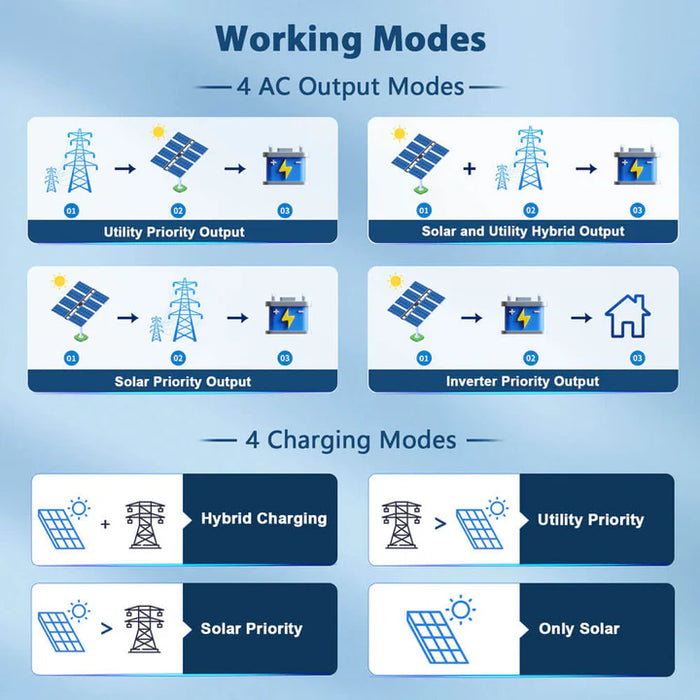

Charging & Output Modes
The inverter provides four charging modes:
It also offers four output priority modes:
-
Utility Priority
-
Solar and Utility Hybrid
-
Solar Priority
-
Inverter Priority
These modes allow users to configure the system based on energy availability and power requirements.

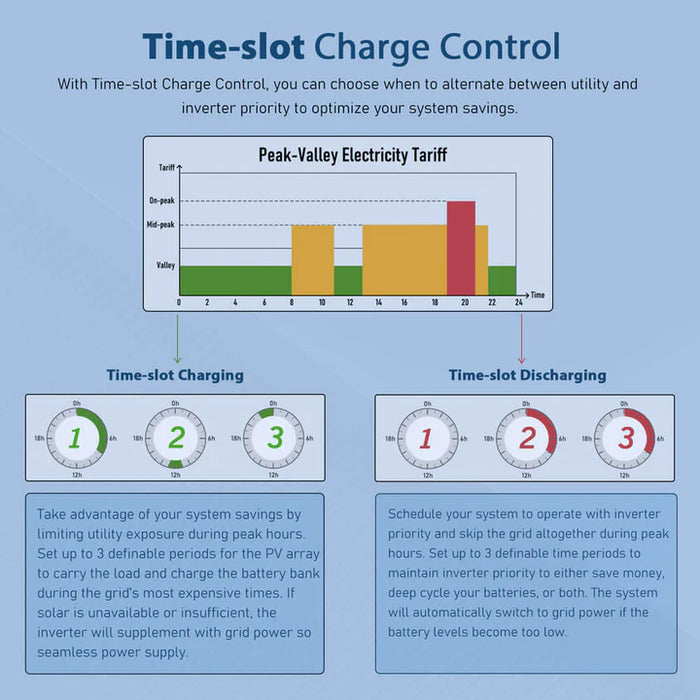

Time-Slot Charging & Discharging
The SPH series includes a time-based charging and discharging function, enabling users to schedule battery charging and usage based on local electricity peak and off-peak tariffs.

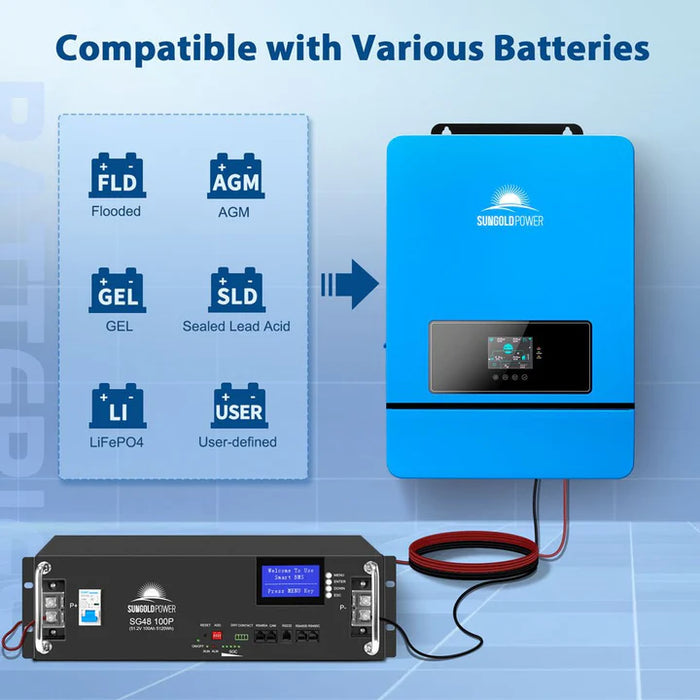

Battery Compatibility
The inverter works with 48V battery systems, including:
The inverter can also operate without a battery. If a lithium battery enters sleep mode, grid power or solar input can activate it. Communication with SunGoldPower batteries is supported via CAN, USB, and RS485 interfaces.

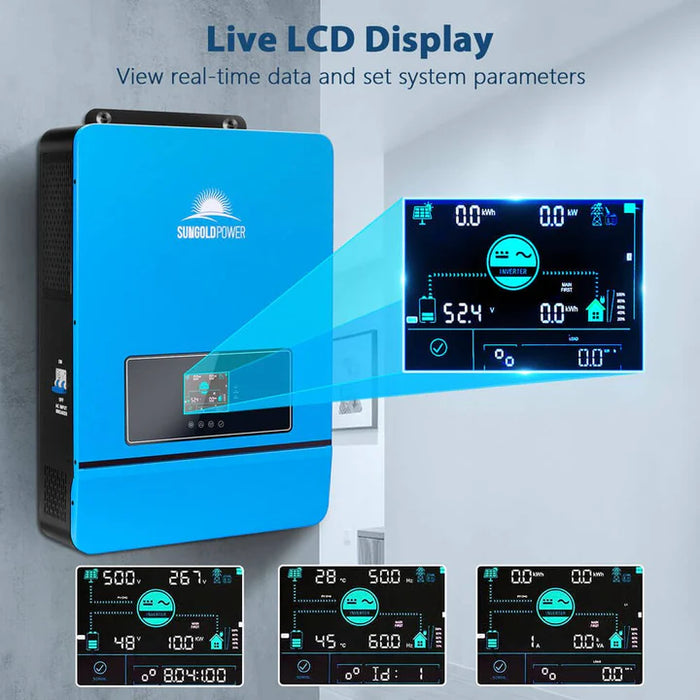

WiFi Monitoring
The included WiFi module enables convenient monitoring of system data through a mobile phone app, allowing users to check inverter performance and settings remotely.
System Operation
Solar panels can charge the battery and supply power to loads through the inverter. If solar power or battery energy is unavailable, the system can use grid power or a generator to supply loads and recharge the battery.
Specificatio
User Manual
Download 8K-10KW48V Split Phase Solar Inverter User's Manual
